Lotus

Name: Front and Rear Wishbone Bush Product Notes: The PF34-1001BLK fits all positions on the Front and Rear wishbones except for the Rear Lower Front Bush which uses PFR34-1002BLK. This part provides an extra 25% stiffness over our previous offerings, reducing distortion and improving wishbone control whilst retaining compliance. Weight: 1547

Name: Front and Rear Wishbone BushProduct Notes: This bush replaces all 'short' upper and lower wishbone bushes except the longer rear lower wishbone front bush which uses PF34-202. Bush Size: 38mm LongWeight: 913Fitting Instructions

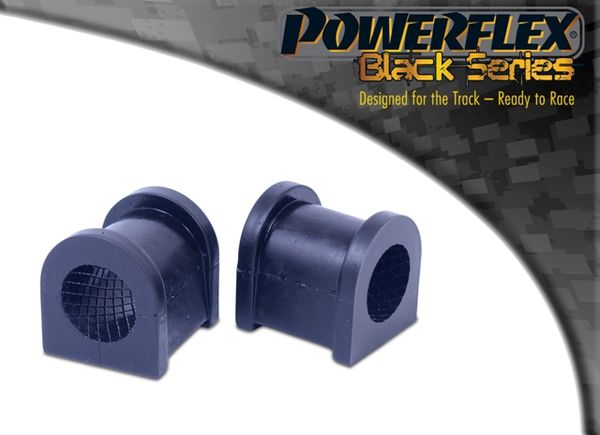

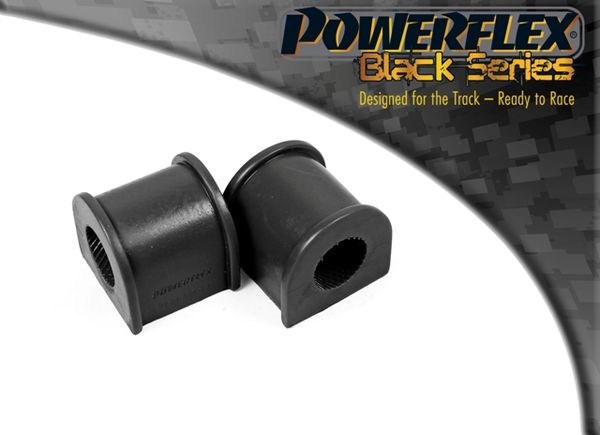

Name: Front Anti Roll Bar Bush 19mmProduct Notes: Fits standard 3/4inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220 Bush Size: 19mmWeight: 115

Name: Front Anti Roll Bar Bush 19mmProduct Notes: Fits standard 3/4inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220 Bush Size: 19mmWeight: 115

Name: Front Anti Roll Bar Bush 21.5mmProduct Notes: Please check anti roll bar diameter before ordering. Bush Size: 21.5mmWeight: 130

Name: Front Anti Roll Bar Bush 21.5mmProduct Notes: Please check anti roll bar diameter before ordering. Bush Size: 21.5mmWeight: 130

Name: Front Anti Roll Bar Bush 22.2mmProduct Notes: Fits uprated 7/8inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220 Bush Size: 22.2mmWeight: 105

Name: Front Anti Roll Bar Bush 22.2mmProduct Notes: Fits uprated 7/8inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220 Bush Size: 22.2mmWeight: 105

Name: Front Anti Roll Bar Bush 23mmProduct Notes: Please check anti roll bar diameter before ordering. Bush Size: 23mmWeight: 130

Name: Front Anti Roll Bar Bush 23mmProduct Notes: Please check anti roll bar diameter before ordering. Bush Size: 23mmWeight: 130

Name: Front Anti Roll Bar Bush 25.4mmProduct Notes: Fits uprated 1inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220 Bush Size: 25.4mmWeight: 95

Name: Front Anti Roll Bar Bush 25.4mmProduct Notes: Fits uprated 1in. anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220 Bush Size: 25.4mmWeight: 95

Name: Front Engine Mount InsertProduct Notes: Fits the 1ZZ & 2ZZ Toyota engine only. PFF34-602 acts to stiffen the voiding of the OE mount, helping to restore a level of responsiveness expected from such a vehicle. Made using our Yellow 70A durometer material, it provides the perfect balance between compliance and stiffness, giving control and precision without compromising comfort. A small increase in NVH, usually at idle should be expected when stiffening the mounting between the engine/transmission and chassis. Weight: 133Fitting Instructions

Name: Front Engine Mount InsertProduct Notes: Fits the 1ZZ & 2ZZ Toyota engine only. PFF34-602 acts to stiffen the voiding of the OE mount, helping to restore a level of responsiveness expected from such a vehicle. Made using our Black 95A durometer material, it provides a no-compromise performance option for track-focused builds. A small increase in NVH, usually at idle should be expected when stiffening the mounting between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. Weight: 133Fitting Instructions

Name: Gear Cable Rear Bush KitProduct Notes: Fit K-Series Engine and Gearbox Only. Kit of 2 bushes. Weight: 30

Name: Gear Cable Rear Bush KitProduct Notes: Fit K-Series Engine and Gearbox Only. Kit of 2 bushes. Weight: 30

Name: Lower Engine Mount Bush Product Notes: Fits K-Series engine only. Weight: 276

Name: Lower Engine Mount Bush Product Notes: Fits K-Series engine only. Weight: 276

Name: Lower Engine Sump Mount BushProduct Notes: Weight: 104

Name: Lower Engine Sump Mount BushProduct Notes: Weight: 104

Name: PowerAlign Wheel Mounting Guide PinProduct Notes: Available singularly to suit a specific vehicle or as a handy 4-piece workshop kit, our new PowerAlign Wheel Mounting Guide Pins are designed to allow the safer mounting and easy alignment of heavy alloy wheels on most common cars to use lug bolts. The individual pins come supplied in a reusable twist tube and the 4-piece workshop kit is supplied with a steel storage case for pride of place in your toolbox.Simply thread the appropriate pin size into one of the bolt holes on the wheel hub. The wheel can then be lifted and placed on the guide pin, and easily slid into place on the hub; keeping the bolt holes aligned for other bolts to be inserted and tightened.This reduces the awkward and back-straining process of holding the wheel in place with one hand whilst lining up and threading in the first bolt; thus, reducing the risk, hassle, and strain of mounting wheels.Proven using simulated and real-world testing, the new mounting pins usehigh-strength CNC-machined AISI 303 Stainless Steel, some 50% stronger than plated mild steel, to ensure durability and resilience in a workshop environment, and are supplied with colour-coded 3D-printedprotective sleeves for ease of identificationandanodised 2011-T6 aluminium caps to absorb knocks and prevent damage to the wheel, unlike others on the market.Please clickhereto view all sizes available and fora wider-reaching application list in the form of anew user-friendly drop-down search function. Weight: 97

Name: Rear Anti Roll Bar Bush 19.5mmProduct Notes: Fits roadster models. Please check anti roll bar diameter before ordering. Bush Size: 19.5mmWeight: 130

Name: Rear Anti Roll Bar Bush 19.5mmProduct Notes: Fits roadster models. Please check anti roll bar diameter before ordering. Bush Size: 19.5mmWeight: 130

Name: Rear Anti Roll Bar Bush 19mmProduct Notes: Fits coupe models. Please check anti roll bar diameter before ordering. Bush Size: 19mmWeight: 130

Name: Rear Anti Roll Bar Bush 19mmProduct Notes: Fits coupe models. Please check anti roll bar diameter before ordering. Bush Size: 19mmWeight: 130

Name: Rear Anti Roll Bar Bush 21mmProduct Notes: Please check anti roll bar diameter before ordering. Bush Size: 21mmWeight: 130

Name: Rear Anti Roll Bar Bush 21mmProduct Notes: Please check anti roll bar diameter before ordering. Bush Size: 21mmWeight: 130

Name: Rear Engine Mount InsertProduct Notes: Fits the 1ZZ & 2ZZ Toyota engine only. PFF34-602 acts to stiffen the voiding of the OE mount, helping to restore a level of responsiveness expected from such a vehicle. Made using our Black 95A durometer material, it provides a no-compromise performance option for track-focused builds. A small increase in NVH, usually at idle should be expected when stiffening the mounting between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. Weight: 133Fitting Instructions

Name: Rear Engine Mount InsertProduct Notes: Fits the 1ZZ & 2ZZ Toyota engine only. PFF34-602 acts to stiffen the voiding of the OE mount, helping to restore a level of responsiveness expected from such a vehicle. Made using our Yellow 70A durometer material, it provides the perfect balance between compliance and stiffness, giving control and precision without compromising comfort. A small increase in NVH, usually at idle should be expected when stiffening the mounting between the engine/transmission and chassis. Weight: 153Fitting Instructions

Name: Rear Lower Wishbone Front BushProduct Notes: This part provides an extra 25% stiffness over our previous offerings, reducing distortion and improving wishbone control whilst retaining compliance. Weight: 244

Name: Rear Lower Wishbone Front BushProduct Notes: Replaces the longer front bush on the rear lower wishbone. Bush Size: 48mm LongWeight: 171

Name: Transmission Mount Bush Insert Kit Product Notes: PFR34-1120BLK Transmission Mount Bush Insert Kit is made in our Black 95A material for track/motorsport use and designed to fill the voiding of the OE rubber. This restricts movement within the mount to provide a more precise and settled engine and transmission response during on/off throttle acceleration and deceleration, with improved shift performance. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the transmission and chassis. The harder the material used, the greater the NVH transmitted. Contains enough parts to fit both the Front and Rear transmission mounts. Weight: 97
