500 1.2-1.4L excl Abarth (2007 on)

Name: Exhaust MountProduct Notes: Weight: 67Fitting Instructions

Name: Exhaust Mount - Cat SectionProduct Notes: Bush Size: A=64mm B=50mmWeight: 60Fitting Instructions

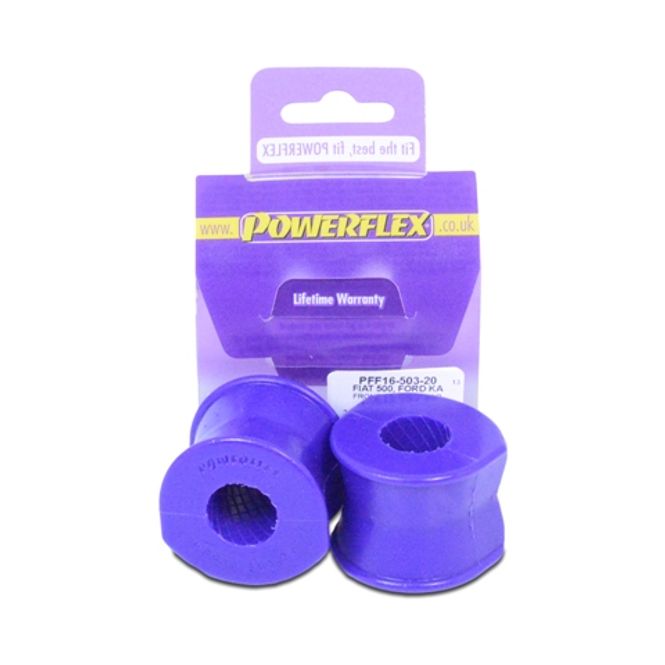

Name: Front Anti Roll Bar Bush 20mmProduct Notes: Bush Size: 20mmWeight: 107

Name: Front Anti Roll Bar Bush 20mmProduct Notes: Bush Size: 20mmWeight: 107

Name: Front Anti Roll Bar Bush 21mmProduct Notes: Bush Size: 21 mmWeight: 107

Name: Front Anti Roll Bar Bush 21mmProduct Notes: Bush Size: 21 mmWeight: 107

Name: Front Arm Front BushProduct Notes: Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models. Weight: 217Fitting Instructions

Name: Front Arm Front BushProduct Notes: Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models. Weight: 217Fitting Instructions

Name: Front Arm Front Bush, Camber AdjustProduct Notes: On car adjustable bush allowing camber adjustment +/- 0.75 degree. Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models. Weight: 403Fitting Instructions

Name: Front Arm Rear BushProduct Notes: Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models. Weight: 573Fitting Instructions

Name: Front Arm Rear BushProduct Notes: Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models. Weight: 573Fitting Instructions

Name: Front Arm Rear Bush Anti-Lift & Caster AdjustProduct Notes: Designed around our unique on-car adjustable Nylon/Polyurethane ball-joint combination for more direct steering input and improved cornering and braking. The offset bore allows for +/- 0.33 of caster adjustment with a supplied spanner to assist the fine-tuning of the cars wheel geometry. Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models. Using aBlack 95A durometerball moulded toan all-new offset stainless steel sleeve andmachined nylon cups,this new and improved design maximises performance and articulation whileretainingthe benefitof on-car adjustability.All come pre-assembled with the ball and cups encapsulated within a plated metal outer shell secured by snap-rings and now include a 27mm spanner for adjustment.Weight: 1044Fitting Instructions

Name: Lower Engine Mount InsertProduct Notes: Fits 500 Non-Abarth 1.2 & 1.4 lower engine mounts. This part fits into voids in original bush. Please check void pattern is the same as on your vehicle. For a complete mount for 500 models use PFF16-530. Fits Grande Punto, Punto Evo and Mk3 Punto 1.2, 1.4 8v and 1.4 16v non-turbo engines. Fits MiTo with 1.4 8v or 1.4 16v non-turbo engines. Weight: 55

Name: Lower Engine Mount InsertProduct Notes: Fits 500 Non-Abarth 1.2 & 1.4 lower engine mounts. This part fits into voids in original bush. Please check void pattern is the same as on your vehicle. For a complete mount for 500 models use PFF16-530. Fits Grande Punto, Punto Evo and Mk3 Punto 1.2, 1.4 8v and 1.4 16v non-turbo engines. Fits MiTo with 1.4 8v or 1.4 16v non-turbo engines. Weight: 55

Name: Lower Torque Mount Fast Road/TrackProduct Notes: Supplied as a Polyurethane bush and CNC machined bracket combination, the Purple 80A materials in PFF16-530P are better suited to those vehicles above stage 1 being used for fast road/track use. A slight increase in NVH should be expected but improved control of wheel spin/hop is achieved. For an insert only use PFF16-520. Weight: 585Fitting Instructions

Name: Lower Torque Mount, Fast Road Product Notes: Supplied as a Polyurethane bush and CNC machined bracket combination, the Yellow 70A and Purple 80A materials in PFF16-530 suits fast road usage. With a minimal increase in NVH, reduced wheel hop and a more direct transition of power to the road, it is suitable for standard and mildly tuned stage 1 vehicles. For an insert only use PFF16-520. Weight: 585Fitting Instructions

Name: Lower Torque Mount, Track Use Product Notes: Supplied as a Polyurethane bush and CNC machined bracket combination for dedicated hard track or motorsport use, PFF16-531BLK uses our Black Series 95A material offering a maximum reduction in wheel spin/hop for those best-timed runs. This is THE product for ultimate engine movement control but an increase in NVH should be expected when fitting. For an insert only use PFF16-520BLK. Weight: 585Fitting Instructions

Name: PowerAlign Camber Bolt Kit (10mm)Product Notes: Our PowerAlign camber bolts replace the original upper bolt on suspension struts with a two-bolt fixing to the knuckle, one positioned above the other, allowing up to +/- 1.75 degrees of adjustment. This kit contains 2 camber bolts, tab washers and nuts. Why not add our Magnetic Camber Gauge to your toolkit so that you can make pit garage adjustments to your suspension using PowerAlignCamber Bolts? Bush Size: M10mm x 70mmWeight: 160Fitting Instructions

Name: PowerAlign Wheel Mounting Guide PinProduct Notes: Available singularly to suit a specific vehicle or as a handy 4-piece workshop kit, our new PowerAlign Wheel Mounting Guide Pins are designed to allow the safer mounting and easy alignment of heavy alloy wheels on most common cars to use lug bolts. The individual pins come supplied in a reusable twist tube and the 4-piece workshop kit is supplied with a steel storage case for pride of place in your toolbox.Simply thread the appropriate pin size into one of the bolt holes on the wheel hub. The wheel can then be lifted and placed on the guide pin, and easily slid into place on the hub; keeping the bolt holes aligned for other bolts to be inserted and tightened.This reduces the awkward and back-straining process of holding the wheel in place with one hand whilst lining up and threading in the first bolt; thus, reducing the risk, hassle, and strain of mounting wheels.Proven using simulated and real-world testing, the new mounting pins usehigh-strength CNC-machined AISI 303 Stainless Steel, some 50% stronger than plated mild steel, to ensure durability and resilience in a workshop environment, and are supplied with colour-coded 3D-printedprotective sleeves for ease of identificationandanodised 2011-T6 aluminium caps to absorb knocks and prevent damage to the wheel, unlike others on the market.Please clickhereto view all sizes available and fora wider-reaching application list in the form of anew user-friendly drop-down search function. Weight: 97

Name: Rear Beam Mounting BushProduct Notes: Does not fit 500/595/695 US models. Weight: 445Fitting Instructions

Name: Rear Beam Mounting BushProduct Notes: Does not fit 500/595/695 US models. Weight: 445Fitting Instructions

Name: Rear Shock Absorber Top Mounting BushProduct Notes: Replaces the top bush on the standard OE shock absorber including the Abarth models. Bush Size: 32mm LongWeight: 266Fitting Instructions

Name: Rear Shock Absorber Top Mounting BushProduct Notes: Replaces the top bush on the standard OE shock absorber including the Abarth models. Bush Size: 32mm LongWeight: 266Fitting Instructions

Name: Upper Engine Mount InsertProduct Notes: Weight: 81Fitting Instructions

Name: Upper Engine Mount InsertProduct Notes: Weight: 81Fitting Instructions
