Caddy Understell

Bilstein B14 PSS coilover kit for VW Caddy III + IV, 3/2004 Justerbart senk Bilstein B14 for VW Caddy 2004-  50mm demper diameter. Caddy mit 50mm Klemmung an der Vorderachs (VA Federbein mit 50mm Durchmesser) mit Frontantrieb , VA Last bis max. 1200kg, HA Last bis max. 1300kg, ohne Caddy Maxi ( Caddy Maxi auf Anfrage ) / for models with frontstruts of 50mm diameter , 2wd front wheel drive , excl. Caddy Maxi Art Nr (part no.) : 47-219188 Tieferlegungsbereich: ca 30 -55mm, HA mit vierfacher Höhenverstellung der Blattfeder

Bilstein B14 PSS coilover kit for VW Caddy III + IV, 3/2004 Justerbart senk Bilstein B14 for VW Caddy 2004-  55mm demper diameter. Caddy mit 55mm Klemmung an der Vorderachs (VA Federbein mit 55mm Durchmesser) mit Frontantrieb , VA Last bis max. 1200kg, HA Last bis max. 1300kg, ohne Caddy Maxi ( Caddy Maxi auf Anfrage ) / for models with frontstruts of 50mm diameter , 2wd front wheel drive , excl. Caddy Maxi Art Nr (part no.) :47-219171 Tieferlegungsbereich: ca 30 -55mm, HA mit vierfacher Höhenverstellung der Blattfeder

Coilover Kit Street Volkswagen CADDY 2004-2019 1076- / -1300 Kilo Med TUV godkjenning  Tech specs SeriesStreetHousinggoldMax. Axle Load FA-1075 kgMax. Axle Load RA-1300 kgLowering FA35 - 90 mmLowering RA35 - 90 mmCamber / top mount FAnoCamber / top mount RAnoCoilover Main Spring (Front)Spring rate (32 N/mm)TUV Certificateyes   Comments 3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).8 - Not for 4x4.19 -  Only for vehicles equipped with single-leaf springs on the rear axle. Vehicles equipped with two-leaf springs on the rear axle must be converted to single-leaf springs. For Caddy, use VW leaf spring part no. 2K0 511 151 N. For Caddy Maxi, use VW leaf spring part no. 2K3 511 151 E. 21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.44 - Installation of the rear axle adjustment must be carried out in accordance with the instruction.45 - Front and rear axle height adjustable (threaded shock absorber housing on the front, provided adjustment plates + shock absorbers on the rear axle).116 - Cars with two-leaf spring on the rear axle should be swapped to on-leaf spring. VW Caddy 3 (-05/2015): 2K5 511 151 N, VW Caddy 4 (05/2015-): 2K5 511 151 AA, VW Caddy MAXI: 2K3 511 151 E.

Coilover Kit Street Volkswagen CADDY 2004-2019 -1075 / -1300 Kilo Med TUV godkjenning  Tech specs SeriesStreetHousinggoldMax. Axle Load FA-1075 kgMax. Axle Load RA-1300 kgLowering FA35 - 90 mmLowering RA35 - 90 mmCamber / top mount FAnoCamber / top mount RAnoCoilover Main Spring (Front)Spring rate (32 N/mm)TUV Certificateyes   Comments 3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).8 - Not for 4x4.19 -  Only for vehicles equipped with single-leaf springs on the rear axle. Vehicles equipped with two-leaf springs on the rear axle must be converted to single-leaf springs. For Caddy, use VW leaf spring part no. 2K0 511 151 N. For Caddy Maxi, use VW leaf spring part no. 2K3 511 151 E. 21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.44 - Installation of the rear axle adjustment must be carried out in accordance with the instruction.45 - Front and rear axle height adjustable (threaded shock absorber housing on the front, provided adjustment plates + shock absorbers on the rear axle).116 - Cars with two-leaf spring on the rear axle should be swapped to on-leaf spring. VW Caddy 3 (-05/2015): 2K5 511 151 N, VW Caddy 4 (05/2015-): 2K5 511 151 AA, VW Caddy MAXI: 2K3 511 151 E.

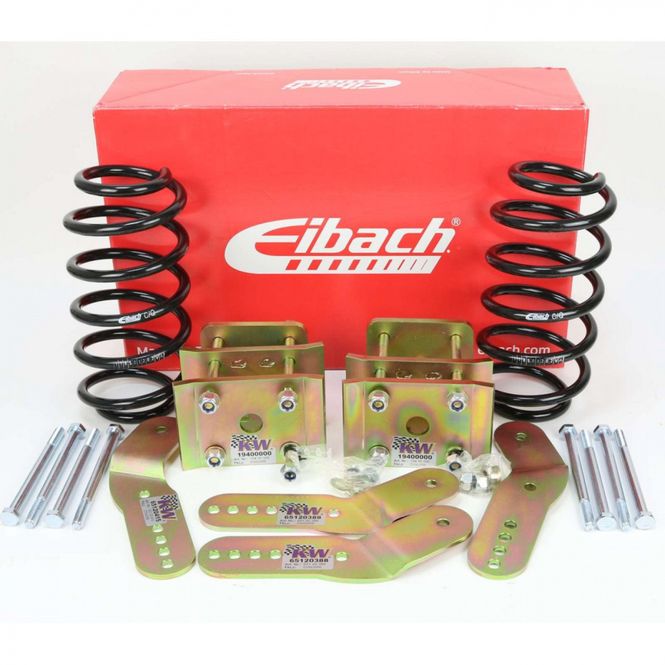

Eibach senk for VW Caddy 2k 2wd 2003- Pro-Kit Fitting Position: Front Axle,  Lowering ca.: 45 mm,  Fitting Position: Rear Axle,  Lowering ca.: 45 mm with roadworthy certificate,  Axle load front axle to: 1170 kg,  Axle Load RA to: 1250 kg   TUV  https://media.carparts-cat.com/pdf/Einbau/186486/112/E1085019.PDF

Eibach senk for VW Caddy 2k 2wd 2003- Pro-Kit Fitting Position: Front Axle,  Lowering ca.: 45 mm,  Fitting Position: Rear Axle,  Lowering ca.: 45 mm with roadworthy certificate,  Axle load front axle to: 1060 kg,  Axle Load RA to: 1250 kg   TUV  https://media.carparts-cat.com/pdf/Einbau/186486/112/E1085019.PDF

Hjelpe fjærsett bak VW caddy 03-20 2wd og 4wd Godkjent for 2wd og 4wd med TUV. Super oppsett for dere som kjører med mye konstand tung last.

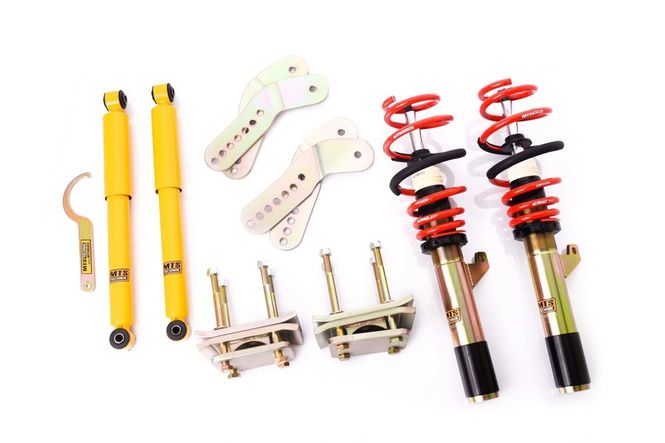

MTS Coilover Kit Street Volkswagen CADDY III MPV (2K/2C) -1075  2wd  50/55 mm    Aksel vekt  opp til  -1075  framme og opp til 1300 kilo  Kun for biler med enkle blad fjører bak. Ikke 4 motion. Inkl TUV  Sjekk gjerne med oss før bestilling

MTS Coilover Kit Street Volkswagen CADDY III MPV (2K/2C) 1076-  2wd  50/55 mm    Aksel vekt fra 1076 kilo framme og opp til 1300 kilo bak. Kun for biler med enkle blad fjører bak. Ikke 4 motion. Inkl TUV  Sjekk gjerne med oss før bestilling

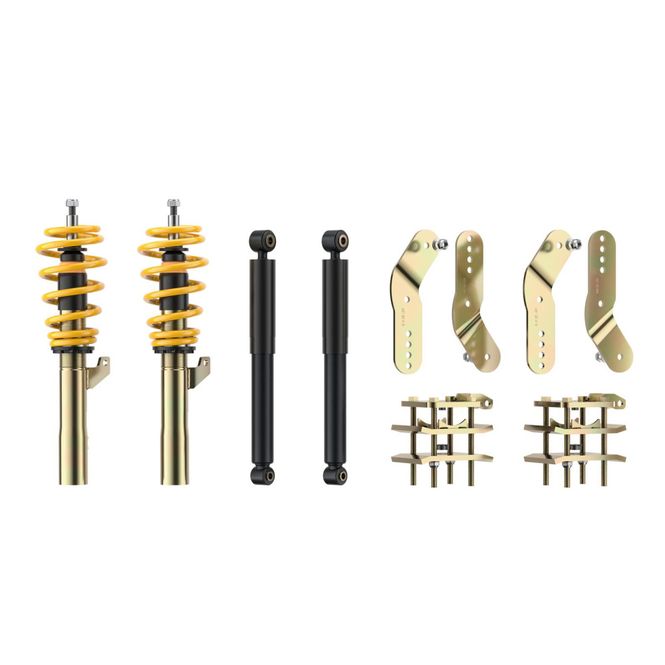

ST 13280066  ST Coilovers ST X galvanized steel (with fixed damping) part-no.: 13280066  Please observe the conditions and instructions for this product. Lowering FA/RA (mm): 50-90/60-80  Version: X Damping adjustment: no Material: Galvanized steel Adjustment FA/RA: Thread/Thread strut diameter front axle (mm): 55 Approval: Teilegutachten (§19.3) Car type: VW CADDY IV Estate (2K, SAB, SAJ) 05/2015-10/2020 2.0 TDI - 110kW - 1968ccm - 4 cyl. - Front Wheel Drive  Only Models    Axle Load FA/RA (kg): 1076-1235/-1300 Not for Caddy Maxi

AP Justerbarts enk VW caddy  -1075 kilo framme og -1300 kilo bak Inkl TUV Part number: 11580022 Version: ap Damping adjustment: no Lowering FA/RA: 50-90mm/60-80mm Adjustment FA/RA: Thread/no Material: Galvanized steel Axle Load FA/RA: -1075kg/-1300kg   Only for cars with a clamp diameter of 50 mm on the front axle. not for vehicles with Xenon headlights. Vehicles with a two-part leaf spring on the rear axle have to be equipped with a one-piece leaf spring. (up to mod.2015; VW part no. for leaf spring spring 2K5511151N; from mod.2015-; VW part no. for leaf spring spring 2K5511151AA).

AP Justerbarts enk VW caddy  -1075 kilo framme og -1300 kilo bak Inkl TUV Part number: 11580022 Version: ap Damping adjustment: no Lowering FA/RA: 50-90mm/60-80mm Adjustment FA/RA: Thread/no Material: Galvanized steel Axle Load FA/RA: -1075kg/-1300kg   Only for cars with a clamp diameter of 55 mm on the front axle. not for vehicles with Xenon headlights. Vehicles with a two-part leaf spring on the rear axle have to be equipped with a one-piece leaf spring. (up to mod.2015; VW part no. for leaf spring spring 2K5511151N; from mod.2015-; VW part no. for leaf spring spring 2K5511151AA).

AP Justerbarts enk VW caddy  1076- kilo framme og -1300 kilo bak Inkl TUV Part number: 11580066 Version: ap Damping adjustment: no Lowering FA/RA: 50-90mm/60-80mm Adjustment FA/RA: Thread/no Material: Galvanized steel Axle Load FA/RA: 1076-kg/-1300kg   Only for cars with a clamp diameter of 55 mm on the front axle. not for vehicles with Xenon headlights. Vehicles with a two-part leaf spring on the rear axle have to be equipped with a one-piece leaf spring. (up to mod.2015; VW part no. for leaf spring spring 2K5511151N; from mod.2015-; VW part no. for leaf spring spring 2K5511151AA).

VW Caddy 5 short & long wheelbase (SK) BILSTEIN EVO S  VW Caddy 5 short & long wheelbase (SKN) BILSTEIN EVO S FORD Tourneo Connect short & long wheelbase (SK) BILSTEIN EVO S - TUV Godkjenning

H&R senkefjører VW caddy 2020-   2wd. Senk vil variere med egenvekten. men ca 35mm framme og bak. Part no.: 28614-1 VW Caddy Cargo/transporter 2WD, type  SKN incl. 5-seater for short and long wheelbase from year of construction 2020 Lowering: FA 30 mm /RA 40 mm   Art.Nr.: 28614-1 VW Caddy Cargo, 2WD, Typ SKN, incl. 5-Sitzer (excl. 7-Sitzer), excl. California, excl. Hochstandsfahrwerk ab Baujahr 2020 Tieferlegung: VA 35 mm / HA 35 mm

H/R senkesett, beste kvalitet. 29011-1, nur fÜr VA-Federbeinaufnahme ø 55mm, Tieferlegung VA 40-70mm, HA: 50-90mm Fjærbein diameter 55mm, komplett framme og bak. Har bilen orginalt dobble bladfjærer må disse byttes til enkle Be om godt tilbud på disse settene.

H/R senkesett, Beste kvalitet. 29011-2, nur fÜr VA-Federbeinaufnahme ø 50mm, Tieferlegung VA 40-70mm, HA: 50-90mm Fjærbein diameter 50mm, komplett framme og bak. Har bilen orginalt dobble bladfjærer må disse byttes til enkle TUV Her: Be om godt tilbud på disse settene.

29274-5: Fram aksel last opp til 1130kg og makx 1300kg bak. Dette sjekker du i vognkortet for bilen. Senker ca 40mm framme og ca 60mm bak. Dette settet innholder senkefjører framme og ombygging sett for baksel for senking. Rimelig og sikkert senkesett til VW caddy 2K uten å måtte gå for justerbart senkesett. Du beholder også kjøre komfort og holdbarhet. H&R er i verdens toppen når det gjelder kvalitets senkesett og understells komponenter til ettermarkedet. Får masse skryt for disse. perfekt til hverdags bruk for arbeidsbiler etc du vil få et mål på ca 37cm fra felg senter til underkant av skjerm framme, bak kan du på nest høyest få ca 37cm og kan da senke senda 2 hakk ned og et hakk opp. TUV papirer https://www.h-r.com/bin/29274.pdf

29274-6: Fram aksel last fra og med 1130kg og maks 1300 kg bak. Dette sjekker du i vognkortet for bilen. Senker ca 40mm framme og ca 60mm bak. Dette settet innholder senkefjører framme og ombygging sett for baksel for senking. Rimelig og sikkert senkesett til VW caddy 2K uten å måtte gå for justerbart senkesett. Du beholder også kjøre komfort og holdbarhet. H&R er i verdens toppen når det gjelder kvalitets senkesett og understells komponenter til ettermarkedet. Lager vare. Får masse skryt for disse. perfekt til hverdags bruk for arbeidsbiler etc du vil få et mål på 37cm fra felg senter til underkant av skjerm framme, bak kan du på nest høyest få 37cm og kan da senke senda 2 hakk ned og et hakk opp.   TUV papirer https://www.h-r.com/bin/29274.pdf

H&R Justerbart senk VW Caddy 2020- Inkl TUV godkjenning. Passer både 5 og 7 seter
