E90, E91, E92 & E93 (2005-2013)

Name: BMW Exhaust Mounting Bush & BracketProduct Notes: Weight: 273Fitting Instructions

Name: Clutch Fork Pivot PinProduct Notes: The factory plastic clutch fork pivot pins (and even some aftermarket bronze/brass ones) are known to squeak, wear excessively and even break over time and when used with high-pressure performance clutches. Our CNC-machined 303-grade stainless steel clutch fork pivot pins solves this issue, as a fit and forget part with our lifetime warranty. Fits manual transmissions only. FF5-470 vs. Plastic BMW OEM Clutch Pivot PinPowerflex Stainless Steel Clutch Pin vs. worn-out factory Clutch Pivot Pin Weight: 59Fitting Instructions

Name: Engine MountProduct Notes: Tuneable engine mounts to suit your driving demands. This mount uses a combination of our Red 65A and Purple 80A materials and can be stiffened further using the Black 95A pins. It fits 6-cyl models only except the E46 Xi and Convertible models, and for the E9* it fits the M3 only. It will not fit any 4-cyl petrol models. An increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. We do not recommend fitting these mounts to diesel-engined vehicles due to excessive NVH. The graph above shows Load vs Displacement, peaking at 5mm displacement.PFF5-4650 is just under 200% stiffer than OE at 5mm compression, increasing to 300%with the 4 adjuster pins installed. Weight: 1635Fitting Instructions

Name: Engine MountProduct Notes: Tuneable engine mounts to suit your driving demands. This mount uses our Black 95A material and can be stiffened further using the Black 95A pins. It fits 6-cyl models only except the E46 Xi and Convertible models, and for the E9* it fits the M3 only. It will not fit any 4-cyl petrol models. An increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. We do not recommend fitting these mounts to diesel-engined vehicles due to excessive NVH. The graph above shows Load vs Displacement, peaking at 5mm displacement.PFF5-4650BLK is nearly 700% stiffer than OE at 5mm compression. Weight: 1635Fitting Instructions

Name: Engine Mount Insert KitProduct Notes: PFF5-4020 and PFF5-4021 Engine Mount Insert Kits are an intermediate alternative to the BMW aluminium inserts and much stiffer full replacement engine mounts available on the aftermarket. Made in our Yellow 70A durometer material, they are designed to fit the voiding of the OE mounts snuggly to restrict engine movement with a minimal increase in NVH, perfect for those with tuned road cars. Their design and flexibility also mean they can be fitted to the vehicle without removing the engine mounts themselves. Reducing engine/transmission movement by way of upgraded inserts has the following benefits: - Sharper throttle response - Improved gear shifting - More direct power transfer - More balanced on/off throttle handling - Prolonged life of the OE mounts. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine and chassis. The harder the material used, the greater the NVH transmitted. Fits N52, N54, N55 and B58 engines only. Weight: 167Fitting Instructions

Name: Engine Mount Insert KitProduct Notes: PFF5-4020BLK and PFF5-4021BLK Engine Mount Insert Kits are an intermediate alternative to the BMW Motorsport aluminium inserts and much stiffer full replacement engine mounts available on the aftermarket. Made in our Black 95A durometer material, they are designed to fit the voiding of the OE mounts snuggly to restrict engine movement, perfect for those with tuned track cars. Their design and flexibility also mean they can be fitted to the vehicle without removing the engine mounts themselves. Reducing engine/transmission movement by way of upgraded inserts has the following benefits: - Sharper throttle response - Improved gear shifting - More direct power transfer - More balanced on/off throttle handling - Prolonged life of the OE mounts. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine and chassis. The harder the material used, the greater the NVH transmitted. Fits N52, N54, N55 and B58 engines only. Weight: 167Fitting Instructions

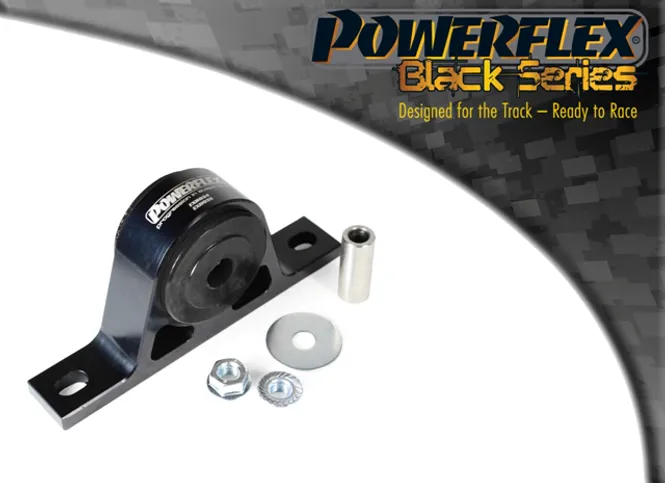

Name: Exhaust Mounting Bush & BracketProduct Notes: Weight: 273Fitting Instructions

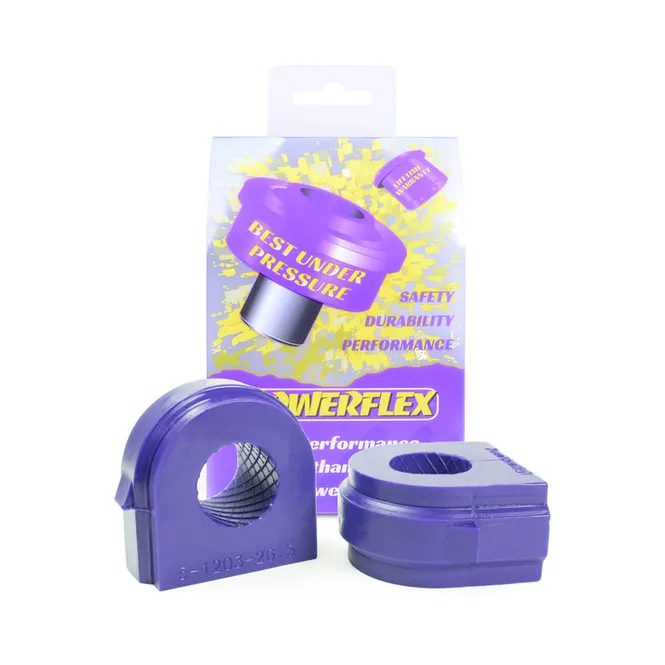

Name: Front Anti Roll Bar Bush 26.5mmProduct Notes: Bush Size: 26.5mmWeight: 201

Name: Front Anti Roll Bar Bush 26.5mmProduct Notes: Bush Size: 26.5mmWeight: 201

Name: Front Anti Roll Bar Bush 28mmProduct Notes: Bush Size: 28mmWeight: 199

Name: Front Anti Roll Bar Bush 28mmProduct Notes: Bush Size: 28mmWeight: 199

Name: Front Anti Roll Bar Mounting Bush 26.5mmProduct Notes: Only fits vehicles from 05/2010 on with 31306787017 brackets fitted Bush Size: 26.5mmWeight: 305

Name: Front Anti Roll Bar Mounting Bush 26.5mmProduct Notes: Please check Anti roll bar size before ordering Bush Size: 26.5mmWeight: 322

Name: Front Anti Roll Bar Mounting Bush 26.5mmProduct Notes: Bush Size: 26.5mmWeight: 322

Name: Front Anti Roll Bar Mounting Bush 26.5mmProduct Notes: Only fits vehicles from 05/2010 on with 31306787017 brackets fitted Bush Size: 26.5mmWeight: 305

Name: Front Control Arm to Chassis BushProduct Notes: Weight: 1092Fitting Instructions

Name: Front Control Arm to Chassis BushProduct Notes: Weight: 1092Fitting Instructions

Name: Front Radius Arm To Chassis BushProduct Notes: PFF5-401 Front Radius Arm to Chassis Bush uses our Black 95A material and is supplied with steel outer shells for better load distribution, offering improved durability and braking stability and a 140% increase over the worn rubber bush. Over the years we have seen a shift in the use of cars such as theBMW E92 M3 andE82 1M Coupe, with more of their time being spent on track and the power, chassis and braking modifications carried out, taking them from being quick road cars to very able and incredibly fast road-legal racers.Whilst creating this new part, we have revisited our existing non-adjustable partPFF5-401 Front Radius Arm to Chassis Bushso that it uses the same material, bush design and outer shell arrangement as above.This change in design increases stiffness by a further 25% over our previous offering for improved durability and braking stabilityand a 140% increase over the worn rubber bush. Weight: 1516Fitting Instructions

Name: Front Radius Arm To Chassis BushProduct Notes: PFF5-401 Front Radius Arm to Chassis Bush uses our Black 95A material and is supplied with steel outer shells for better load distribution, offering improved durability and braking stability and a 140% increase over the worn rubber bush. Over the years we have seen a shift in the use of cars such as theBMW E92 M3 andE82 1M Coupe, with more of their time being spent on track and the power, chassis and braking modifications carried out, taking them from being quick road cars to very able and incredibly fast road-legal racers.Whilst creating this new part, we have revisited our existing non-adjustable partPFF5-401 Front Radius Arm to Chassis Bushso that it uses the same material, bush design and outer shell arrangement as above.This change in design increases stiffness by a further 25% over our previous offering for improved durability and braking stabilityand a 140% increase over the worn rubber bush. Weight: 1516Fitting Instructions

Name: Front Radius Arm To Chassis Bush Caster AdjustProduct Notes: PFF5-401G Front Radius to Chassis Bush Caster Adjustable to provide up to +/- 0.75 degrees of on-car caster adjustment, resulting in greater in-corner camber gain, improved stability at high-speed and the ultimate optimisation of your vehicle's front wheel geometry. Made in our stiffest Black 95A material and supplied with steel outer shells for better load distribution and an offset adjustable CNC-machined stainless-steel sleeve and spanner, it combines all of the necessary ingredients to be perfectly suited to both road and track use. Over the years we have seen a shift in the use of cars such as theBMW E92 M3 andE82 1M Coupe, with more of their time being spent on track and the power, chassis and braking modifications carried out, taking them from being quick road cars to very able and incredibly fast road-legal racers.Made in our stiffest Black 95Amaterial and supplied with steel outer shells for better load distribution and an offset adjustable CNC-machined stainless-steel sleeve and spanner, it combinesall of the necessary ingredients to be perfectly suited to both road and track use.PFF5-401G Front Radius to Chassis Bush Caster Adjustableto provide up to+/- 0.75 degreesof on-car caster adjustment, resulting in greater in-corner camber gain, improved stability at high-speed and the ultimate optimisation of your vehicle's front wheel geometry.This change in design increases stiffness by a further 25% over our previous offering for improved durability and braking stabilityand a 140% increase over the worn rubber bush. Weight: 1629Fitting Instructions

Name: Front Radius Arm To Chassis Bush Caster AdjustProduct Notes: PFF5-401G Front Radius to Chassis Bush Caster Adjustable to provide up to +/- 0.75 degrees of on-car caster adjustment, resulting in greater in-corner camber gain, improved stability at high-speed and the ultimate optimisation of your vehicle's front wheel geometry. Made in our stiffest Black 95A material and supplied with steel outer shells for better load distribution and an offset adjustable CNC-machined stainless-steel sleeve and spanner, it combines all of the necessary ingredients to be perfectly suited to both road and track use. Over the years we have seen a shift in the use of cars such as theBMW E92 M3 andE82 1M Coupe, with more of their time being spent on track and the power, chassis and braking modifications carried out, taking them from being quick road cars to very able and incredibly fast road-legal racers.Made in our stiffest Black 95Amaterial and supplied with steel outer shells for better load distribution and an offset adjustable CNC-machined stainless-steel sleeve and spanner, it combinesall of the necessary ingredients to be perfectly suited to both road and track use.PFF5-401G Front Radius to Chassis Bush Caster Adjustableto provide up to+/- 0.75 degreesof on-car caster adjustment, resulting in greater in-corner camber gain, improved stability at high-speed and the ultimate optimisation of your vehicle's front wheel geometry.This change in design increases stiffness by a further 25% over our previous offering for improved durability and braking stabilityand a 140% increase over the worn rubber bush. Weight: 1629Fitting Instructions

Name: Front Track Control Arm Inner BushProduct Notes: Weight: 752Fitting Instructions

Name: Front Track Control Arm Inner BushProduct Notes: Weight: 752Fitting Instructions

Name: Gear Shift Arm Front Bush OvalProduct Notes: Depending on vehicle application, this part can be 1 or 2 per car. Size 22mm W x 17mm H x 26mm L. Bush Size: 22mm x 17mm x 26mmWeight: 26

Name: Gear Shift Arm Front Bush OvalProduct Notes: Depending on vehicle application, this part can be 1 or 2 per car. Size 22mm W x 17mm H x 26mm L. Bush Size: 22mm x 17mm x 26mmWeight: 26

Name: Jack Pad AdaptorProduct Notes: PF5-4660 is a polyurethane jack pad to fit into the plastic lifting points found on most modern BMW and related vehicles and is designed to help lift stability and location, whilst protecting the underside of your vehicle. Fits the following vehicles: BMW 1 Series E81, E87, E88 (2004 - 2013) BMW 1 M E82 (2010 - 2012) BMW 1 Series F20, F21 (2011 - 2019) BMW 1 Series F40 (2018 on) BMW 1 Series F52 (2017 on) BMW 2 Series F22, F23 (2013 - 2020) BMW 2 Series Gran Coupe F44 (2019 on) BMW 2 Series Active Tourer F45, F46 (2014 - 2019) BMW M2 F87 (2015 on) BMW 3 Series E46 (1999 - 2006) BMW 3 Series E90, E91, E92, E93 (2005 - 2013) BMW 3 Series F30, F31, F34 (2011 - 2018) BMW M3 F80 (2011 - 2018) BMW 3 Series G20, G21, G28 (2018 on) BMW M3 G80 (2018 on) BMW 4 Series F32, F33, F36 (2013 - 2021) BMW M4 F82, F83 (2013 - 2021) BMW 4 Series G22, G23 (2020 on) BMW M4 G82, G83 (2020 on) BMW 5 Series E39 (1996 - 2004) BMW 5 Series E60, E61 (2003 - 2010) BMW 5 Series Gran Turismo F07 (2009 - 2016) BMW 5 Series F10, F11 (2010 - 2016) BMW 5 Series G30, G31 (2016 on) BMW M5 F90 (2017 on) BMW 6 Series E63, E64 (2003 - 2010) BMW 6 Series F06, F12, F13 (2011 - 2018) BMW 6 Series Gran Turismo G32 (2017 on) BMW 7 Series E38 (1994 - 2002) BMW 7 Series E65, E66, E67 (2001 - 2008) BMW 7 Series F01, F02, F03, F04 (2007 - 2016) BMW 7 Series G11, G12 (2015 on) BMW M8 F91, F92, F93 (2019 on) BMW 8 Series G14, G15, G16 (2018 on) BMW X1 E84 (2008 - 2015) BMW X1 F48 (2016 on) BMW X2 F39 (2017 on) BMW X3 E83 (2003 - 2010) BMW X3 F25 (2009 - 2017) BMW X3 F97, G01 (2017 on) BMW iX3 G08 (2020 on) BMW X4 F26 (2013 - 2018) BMW X4 F98, G02 (2018 on) BMW X5 E53 (1999 - 2006) BMW X5 E70 (2006 - 2013) BMW X5 F15, F85 (2013 - 2019)BMW X5 F85 M (2013 - 1018) BMW X5 F95, G05 (2018 on) BMW X6 E71, E72 (2007 - 2014) BMW X6 F16, F86 (2015 - 2019) BMW X6 F96, G06 (2019 on) BMW X7 G07 (2018 on) BMW Z4 E85, E86 (2003 - 2009) BMW Z4 E89 (2009 - 2018) BMW Z4 G29 (2018 on) Mini Hatch R50, R53 (2000 - 2006) Mini Hatch R56 (2006 - 2013) Mini Hatch F55, F56 (2014 on) Mini Cabriolet R52 (2000 - 2006) Mini Cabriolet R57 (2006 - 2013) Mini Cabriolet F57 (2014 on) Mini Clubman R55 (207 - 2014) Mini Clubman F54 (2015 on) Mini Countryman F60 (2017 on) Mini Coupe R58 (2011 - 2015) Mini Roadster R59 (2012 - 2015) Rolls Royce Ghost RR4 (2008 - 2018) Rolls Royce Phantom RR1 (2003 - 2017) Rolls Royce Phantom RR11, RR12 (2017 on) Rolls Royce Wraith RR5 (2012 - 2018) Rolls Royce Dawn RR6 (2015 - 2018) Rolls Royce Cullinan RR31 (2017 on) Toyota Supra MK5 J29 (2019 on) Bush Size: 80mm DiameterWeight: 136

Name: PowerAlign Wheel Mounting Guide PinProduct Notes: Available singularly to suit a specific vehicle or as a handy 4-piece workshop kit, our new PowerAlign Wheel Mounting Guide Pins are designed to allow the safer mounting and easy alignment of heavy alloy wheels on most common cars to use lug bolts. The individual pins come supplied in a reusable twist tube and the 4-piece workshop kit is supplied with a steel storage case for pride of place in your toolbox.Simply thread the appropriate pin size into one of the bolt holes on the wheel hub. The wheel can then be lifted and placed on the guide pin, and easily slid into place on the hub; keeping the bolt holes aligned for other bolts to be inserted and tightened.This reduces the awkward and back-straining process of holding the wheel in place with one hand whilst lining up and threading in the first bolt; thus, reducing the risk, hassle, and strain of mounting wheels.Proven using simulated and real-world testing, the new mounting pins usehigh-strength CNC-machined AISI 303 Stainless Steel, some 50% stronger than plated mild steel, to ensure durability and resilience in a workshop environment, and are supplied with colour-coded 3D-printedprotective sleeves for ease of identificationandanodised 2011-T6 aluminium caps to absorb knocks and prevent damage to the wheel, unlike others on the market.Please clickhereto view all sizes available and fora wider-reaching application list in the form of anew user-friendly drop-down search function. Weight: 97

Name: Rear Anti Roll Bar Bush 11mmProduct Notes: Please check anti roll bar diameter before ordering Bush Size: 11mmWeight: 193

Name: Rear Anti Roll Bar Bush 11mmProduct Notes: Please check anti roll bar diameter before ordering Bush Size: 11mmWeight: 193

Name: Rear Anti Roll Bar Bush 12mmProduct Notes: Please check anti roll bar diameter before ordering Bush Size: 12mmWeight: 193

Name: Rear Anti Roll Bar Bush 12mmProduct Notes: Please check anti roll bar diameter before ordering Bush Size: 12mmWeight: 193

Name: Rear Anti Roll Bar Bush 13mmProduct Notes: Please check anti roll bar diameter before ordering Bush Size: 13mmWeight: 193
